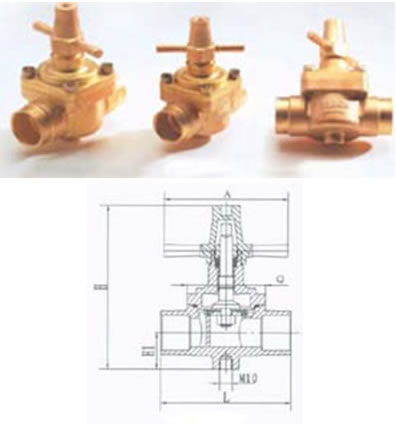

BIG Globe Valves Could be used in commercial, civil, industrial air-conditioning system, The spindle is automatic closed, it can be installed in any position which needs to change the direction.
TYPE |
ODF Connection only |
H |
H1 |
L |
Q |
A |
|
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
BIG6510/7 |
7/8 |
22.4 |
5.4 |
136 |
1.1 |
28.5 |
3.9 |
100 |
2.4 |
60 |
3.7 |
94 |
BIG6510/9 |
1-1/8 |
28.8 |
5.4 |
136 |
1.1 |
28.5 |
3.9 |
100 |
2.4 |
60 |
3.7 |
94 |
BIG6510/11 |
1-3/8 |
35.5 |
6.5 |
166 |
1.3 |
34 |
4.6 |
118 |
2.7 |
68 |
5.0 |
126 |
BIG6510/13 |
1-5/8 |
42.0 |
7.8 |
199 |
1.5 |
37 |
5.5 |
141 |
3.4 |
88 |
5.4 |
138 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
