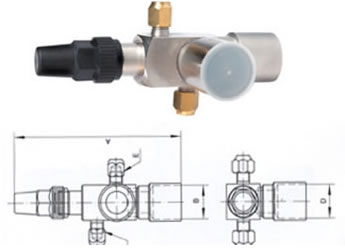

Valve Body

Specifications

A

B.D

Filing Opening E

Imperial

Metric

Imperial

Metric

22

3/8"

10

104

Φ9.8

1/4"

M12X1.25

1/2"

12

104

Φ12.9

1/4"

M12X1.25

5/8"

16

105

Φ16

1/4"

M12X1.25

30

3/4"

19

134

Φ19.2

1/4"

M12X1.25

7/8"

22

134

Φ22.4

1/4"

M12X1.25

1-1/8"

28

148

Φ28.7

1/4"

M12X1.25

35

1-1/8"

28

148

Φ28.7

1/4"

M12X1.25

1-3/8"

35

186

Φ35.2

1/4"

M12X1.25

40

1-3/8"

35

195

Φ35.2

1/4"

M12X1.25

1-5/8"

42

195

Φ41.5

1/4"

M12X1.25

50

1-5/8"

42

210

Φ41.5

1/4"

M12X1.25

2-1/8"

54

210

Φ54.2

1/4"

M12X1.25

2-1/4"

58

210

Φ57.3

1/4"

M12X1.25
