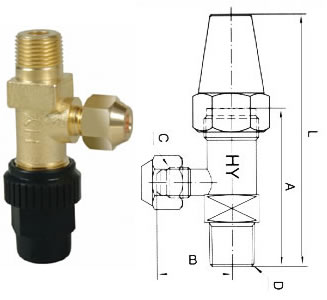

Right Angle Air Outlet Valve
|
Valve Body |
L |
A |
B |
C |
D |
Remark |
|
BI-D4-1 |
82 |
58 |
28 |
7/16"-20UNF |
NPT1/4" |
1/4"FL×1/4"NPT |
|
BI-D4-2 |
82 |
58 |
28 |
7/16"-20UNF |
NPT1/4" |
1/4"FL×1/4"NPT |
|
BI-D4-3 |
82 |
58 |
28 |
7/16"-20UNF |
NPT3/8" |
1/4"FL×3/8"NPT |
|
BI-D8-1 |
82 |
58 |
28 |
5/8"-18UNF |
NPT1/4" |
3/8"FL×1/4"NPT |
|
BI-D8-2 |
82 |
58 |
29.5 |
5/8"-18UNF |
NPT3/8" |
3/8"FL×3/8"NPT |
|
BI-D10-1 |
106 |
61 |
34 |
5/8"-18UNF |
NPT3/8" |
3/8"FL×3/8"NPT |
|
BI-D10-2 |
106 |
61 |
34 |
3/4"-16UNF |
NPT3/8" |
1/2"FL×3/8"NPT |
|
BI-D13-1 |
110 |
66 |
36 |
3/4"-16UNF |
NPT1/2" |
1/2"FL×1/2"NPT |
|
BI-D16-1 |
113 |
90 |
42 |
7/8"-14UNF |
NPT3/4" |
5/8"FL×3/4"NPT |
|
BI-D19-1 |
133 |
90 |
42 |
1-1/16"-14UNF |
NPT3/4" |
3/4"FL×3/4"NPT | |
